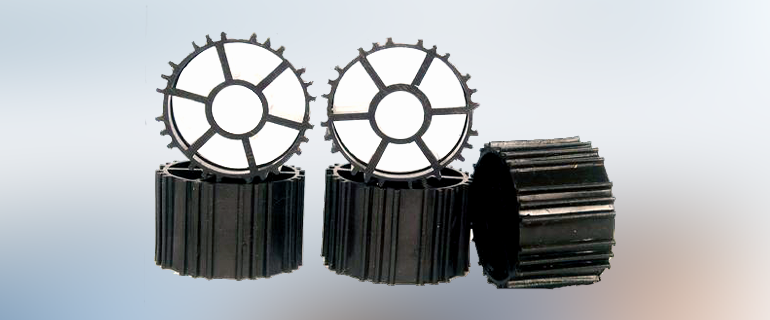

MBBR Media(Moving Bed Biofilm Reactor)

Description

Urban & industrial wastewater reclamation is the necessity of the day. We cannot and afford to discharge untreated or insufficiently treated water into the environment.

Out of the many processes available, biological processes (biofilms) are proving to be the satisfactory solution for the removal of organic compounds and nutrients from the wastewater before discharging.

MBBR media combines the benefits of both activated sludge process and the fixed film process. It is a continuous flow process which uses media / carriers that provide sites for the attachment of active bacteria in a suspended medium which can be used for wastewater treatment. The result is more treatment capacity within a given reactor volume, resulting in a smaller footprint compared to a convential activated sludge process.

Technical Data Sheet For Mbbr Media

Model STEP-MBBR-1522
Total Surface Area (m2/m3) 280-300 sq.m
Color Black/White
Shape Cylindrical
Media Height 15 MM
Media Diameter 22 MM
Type Of Media Fluidized Bio Media
Structure Cylindrical With External and internal Fins
No of Pieces 70,000 pcs
Voidage 90-92 %
Material of FAB Media Polyproprielin
Weight 90-92 Kg/Bag
