Diffusers

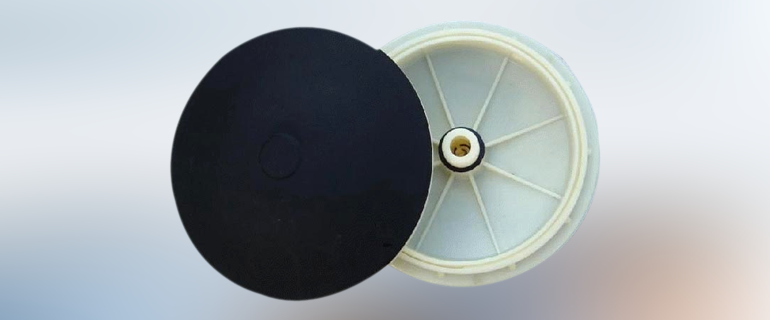

Disc Diffuser

Description

Bubble disc diffusers are made of high-strength polypropylene with 3/4" MNPT connections. Each diffuser has a minimum of 6,600 engineered air release orifices, which is up to 20% more than comparable models. The special design of the EPDM membrane, with its engineered thickness taper, results in full utilization of the membrane surface, even at low airflow operations. This results in improved oxygen transfer efficiency, along with maximum operational flexibility.

Every bubble disc diffuser has an integral "triple" check valve to prevent fluid backflow. Normal airflow range is 0–5 cm. Resistance is about 10" H2O when clean. Has fine bubble EPDM membranes installed and weighs 2 lbs. Medium, coarse and coarse/fine combination membranes are also available for specialty applications (call for pricing).

Technical Data Sheet For Mbbr Media

Model STEP-Dd-9 STEP-Dd-12
Shape Of Aerator Disc Type Disc Type
Moc Of Membrane Epdm Epdm
Size Of Aerator 9” 12”
Type Of Bubble Fine Bubble Fine Bubble
Size Of Bubbles 0.8 Mm – 2.1 Mm 0.8 Mm – 2.1 Mm
Air Flow Rate 2.5 – 5.0 Cum/Hr 4.2 – 8.3 Cum/Hr
Flow Range 0 -12.0 Cum/Hr 0 – 20.0 Cum/Hr
Moc Of Membrane Subiort Abs Abs
Active Surface Area 0.0375 0.0650 Sqm
Operating Temperature Range 35 Deg. Cel 35 Deg. Cel
Temperature  Tolerance Max 85 Deg. Cel Max 85 Deg. Cel
Oxygen Utilization Ratio (%) 30 30
Size Of End Connection 3/4” Npt, Male 3/4” Npt, Male
Slit Quantity 6600 10155
Weight 0.680 Kgs 1.4 Kgs

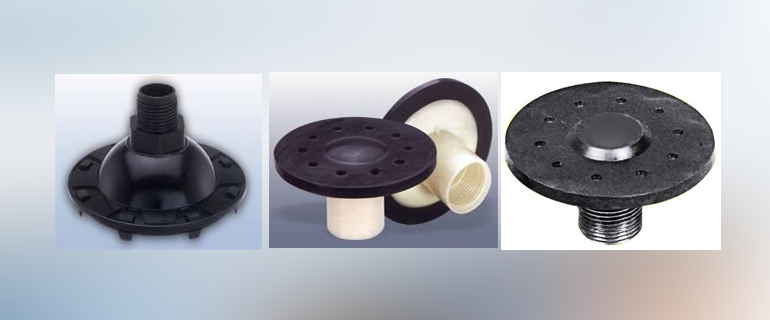

Coarse Bubble Diffuser

Technical Data Sheet For Mbbr Media

MODEL STEP-CBD - 150 STEP-CBD - 80
SHAPE OF AERATOR DISC TYPE DISC TYPE
MOC OF MEMBRANE EPDM EPDM
SIZE OF AERATOR 150 MM DIA. 80 MM DIA
TYPE OF BUBBLE COARSE BUBBLE COARSE BUBBLE
SIZE OF BUBBLES 4.0 MM TO 5.0 MM 4.0 MM TO 5.0 MM
AIR FLOW RATE 4 - 10 CUM/HR 1 - 5 CUM/HR
MOC OF MEMBRANE SUBIORT ABS ABS
OPERATING TEMPERATURE RANGE 35 DEG. CEL 35 DEG. CEL
TEMPERATURE  TOLERANCE MAX 85 DEG. CEL MAX 85 DEG. CEL
SIZE OF END CONNECTION 1” BSP, MALE ½” BSP, MALE
TYPE OF AIR DISCHARGE PERIPHERAL AIR DISCHARGE TOP AIR DISCHARGE
NO. OF AIR DISCHARGE PORTS 8 NOS. 10 NOS.

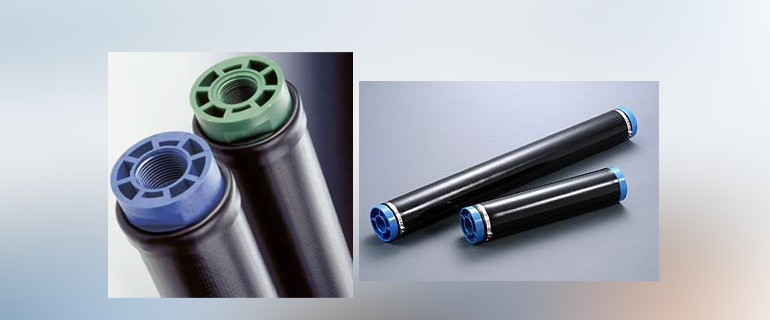

FINE BUBBLE DIFFUSER

Technical Data Sheet For Mbbr Media

TYPE MEMBRANE LENGTH AIR FLOW RATE
STEP-BI-63-610 63MM 610 MM 2.0  -  7.0 m3/hr
STEP-BI-63-1000 63MM 1000 MM 7.0 – 10.0 m3/hr
STEP-BI-90-1000 90 MM 1000 MM 9.0 – 12.5 m3/hr
Model STEP-FBD-63/610
Material Epdm / Silicon
Diameter 63 Mm
Length 610 Mm
Type Of Bubble Fine
Size Of Bubbles 1.0 To 2.0 Mm
Air Flow Rate 2.0 – 7.0 Cum/Hr
Effective Area Of Membrane 0.1 Sq. M
Operating Temperature Range 35 Deg. Celsius
Temperature  Tolerance Maximum 85 Deg. Celsius
Size Of End Connection ¾” Npt
Moc Of Membrane Subiort Pvc
Moc Of Membrane Clamps Ss - 304
Moc Of End Cap Pvc
Moc Of End Connector Pvc
Size Of End Connection Ss Aisi 304
No. Of Slits 8435
